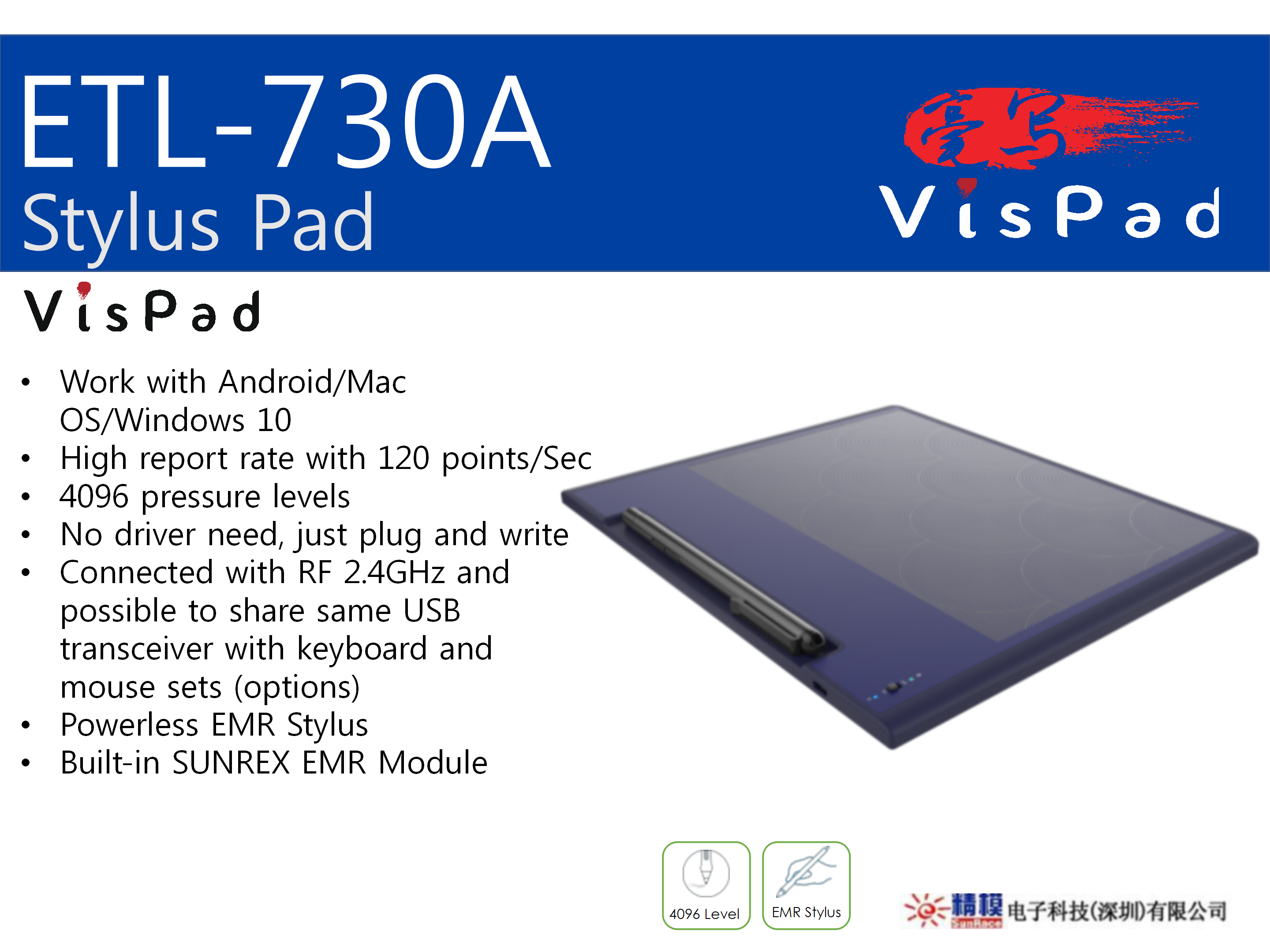

ETL-730A Stylus Pad
Technology | SUNREX Electromagnetic |
Pen | EMR Stylus Pen |
Active Area | 216.9mm(L) x 135.5mm(W) |
Pen Positioning Accuracy | ±0.5mm |
Resolution | 2540LPI |
Reading Height | 1~8mm above sensor board |
Pen Tilt | Up to 45 degree from vertical |
Connection | RF 2.4GHz |
Report Rate | 120 Points/Sec |
Coordinate Report Mode | Absolute Mode |
Pressure | 4096 Levels |
Power Supply | Micro USB 5V (±5%) |
Battery | 450mAh |
Power Consumption | Pen In Rang : 43mA Pen Out Range : 23mA Pen Out Range Over 10 Mins : 10mA Sleep : 80uA |
